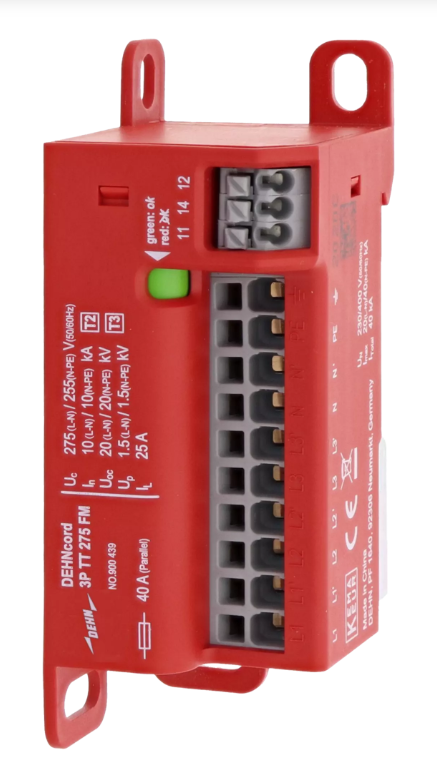

DEHNcord 3P

The DEHNcord 3P combines reliable Type 2 + Type 3 surge protection with an exceptionally compact design. Developed for installations where space is limited, it offers flexible mounting and connection options and is ideal for both new installations and retrofitting.

  • Type 2 + Type 3 surge arrester
  • Compact and versatile design
  • Flexible mounting and connection
Technical Details

What sets the DEHNcord 3P apart

  • Small and compact

    The compact enclosure makes DEHNcord 3P easy to integrate even where installation space is extremely limited. This makes it particularly suitable for wall boxes and other confined electrical installations.

    Easy retrofitting
    Its compact and versatile design also makes DEHNcord 3P an ideal solution for upgrading existing installations.

  • Flexible installation

    DEHNcord 3P can be installed on a DIN rail or mounted directly to a wall, providing maximum flexibility depending on the installation situation.

    Flexible connection
    Parallel or series connection is possible, while push-in terminals for conductors up to 6 mm² enable quick and uncomplicated installation.

  • Reliable monitoring

    The floating remote signalling contact provides reliable information about the status of the arrester. In addition, the visual mechanical status indication is easy to see from different angles.

Compact protection, maximum flexibility

The DEHNcord 3P provides reliable surge protection for sensitive electronic systems where installation space is limited. Designed as a Type 2 + Type 3 surge arrester, its compact enclosure and flexible mounting options allow it to fit into almost any gap. Suitable for TT and TN systems, it is a versatile solution for both new installations and retrofitting.

Flexible installation – even in the smallest spaces

Limited installation space can make surge protection difficult to implement. DEHNcord 3P solves this challenge with a compact enclosure and versatile mounting options. DIN rail or wall mounting, parallel or series connection and push-in terminals provide the flexibility required for quick and uncomplicated installation.

Technical features at a glance

  1. Type 2 + Type 3 surge protection
    for reliable protection of sensitive electronic systems
  2. Push-in terminal
    for conductors up to 6 mm² and quick installation
  3. Flexible mounting
    DIN rail or wall mounted depending on the installation situation

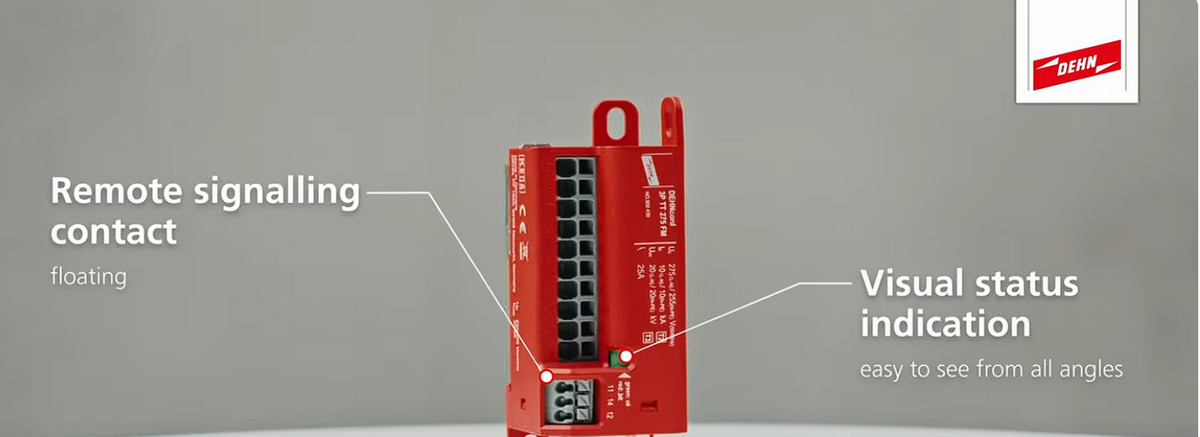

  4. Remote signalling contact
    floating contact for reliable status monitoring
  5. Flexible connection
    suitable for parallel or series connection
  6. Visual status indication
    mechanical indication that is easy to see from all angles

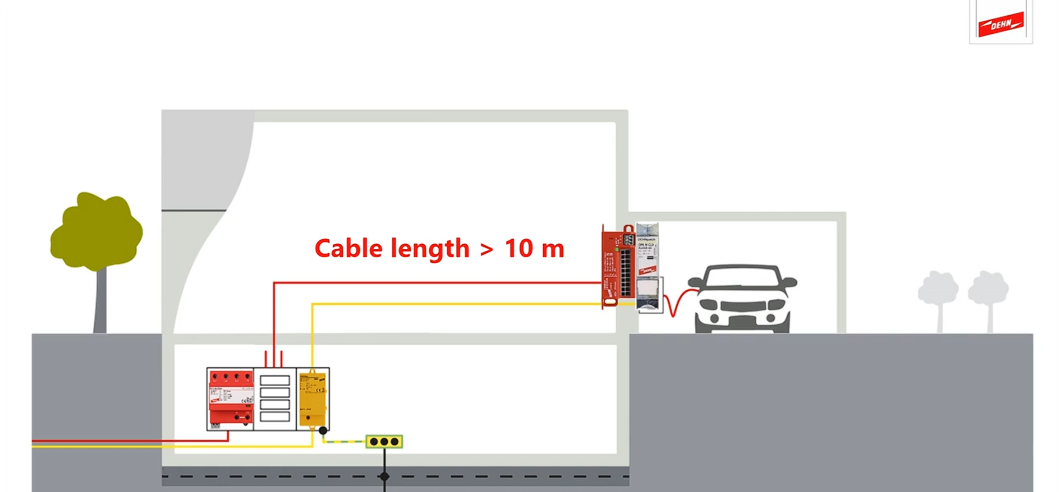

Information Videos
