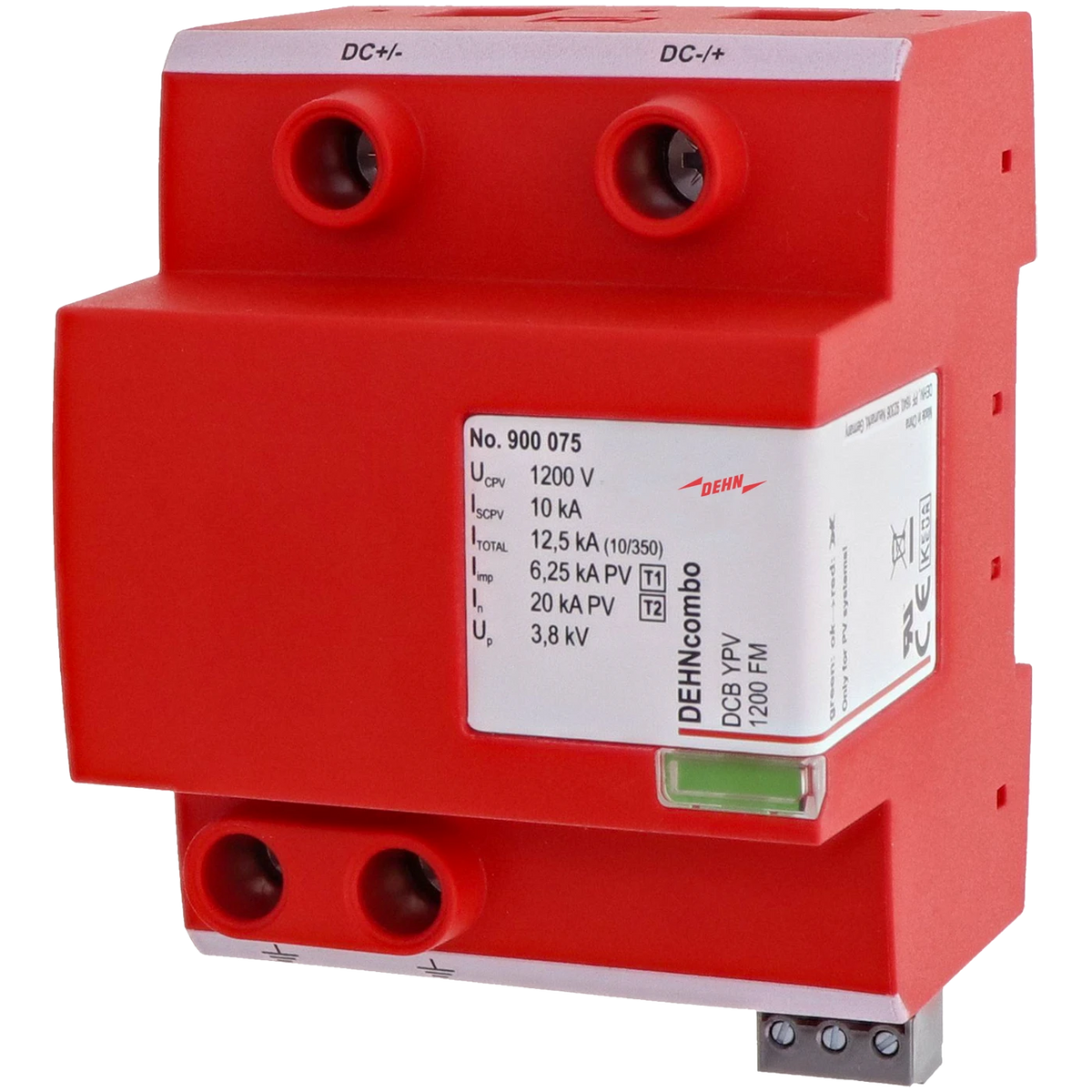

DEHNcombo YPV 1200 FM

DEHNcombo YPV 1200 FM

Type 1+2 SPD, lightning and surge protection for your PV system

$857.61 AUD
$857.61 AUD
Sale Sold out

Typ 1+2 SPD

Applicable in PV systems in accordance with IEC 60364-7-712 / DIN VDE 0100-712

Universally applicable in earthed and unearthed PV systems

Prewired type 1 and type 2 combined lightning current and surge arrester for use in photovoltaic generator circuits

Fault-resistant Y circuit prevents damage to the surge protective device in case of insulation faults in the generator circuit

📋 Technical Data (Click to expand)
Specification Value
SPD according to EN 61643-31 / IEC 61643-31 Type 1 + Type 2 / Class I + Class II
Max. PV voltage [DC+ - DC-] (UCPV) ≤ 1200 V
Max. PV voltage [DC+/DC- - PE] (UCPV) ≤ 1200 V
Short-circuit withstand capability (ISCPV) 10 kA
Nominal discharge current (8/20 µs) (In) 20 kA
Max. discharge current (8/20 µs) (Imax) 40 kA
Total discharge current (8/20 µs) [DC+/DC- - PE] (Itotal) 40 kA
Total discharge current (10/350 µs) [DC+/DC- - PE] (Itotal) 12.5 kA
Lightning impulse current (10/350 µs) [DC+ - PE/DC- - PE] (Iimp) 6.25 kA
Voltage protection level [(DC+/DC-) - PE] (UP) < 3.8 kV
Voltage protection level [DC+ - DC-] (UP) < 3.8 kV
Response time (tA) ≤ 25 ns
Operating temperature range (TU) -40 °C ... +80 °C
Operating state / Fault indication Green / Red
Number of ports 1
Cross-sectional area (min.) 1.5 mm² solid / fine-stranded
Cross-sectional area (max.) 35 mm² stranded / 25 mm² fine-stranded
For mounting on 35 mm DIN rail according to EN 60715
Enclosure material Thermoplastic, red, UL 94 V-0
Place of installation Indoor
Degree of protection IP 20
Capacity 4 Standard DIN module, DIN 43880
Approvals KEMA, UL
Extended Technical Data
Use in DC battery storage systems up to ISCCR ≤ 100 kA (t ≤ 5.83 ms)
Backup fuse for DC battery storage systems up to ISCCR Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, Mfg. Art. No.: 170M2040
Mersen Protistor D122SD20C200QF 200A 2000V DC aR
